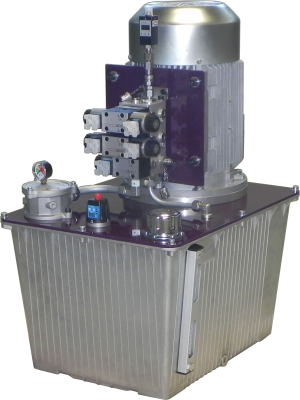

Our ready-to-use, electrically-powered hydraulic power units are designed to control 1-8 actuators, such as hydraulic cylinders or motors. The series includes models with maximum power outputs of 5.5, 7.5, and 11 kW.
Specifications
- Continuous flow up to 35 lpm
- Continuous pressure up to 230 bar
The HS00390 series HPUs are medium-sized, entry-level units equipped with everything needed for seamless integration into your machines or production lines. All components are sourced from well-known brands, tested, and quality-controlled. However, the quality of components alone isn't enough; our precisely designed and dimensioned units ensure stable and durable performance.
These HPUs are generally interchangeable with other projects, with the added advantage of incorporating all necessary sensors to connect the unit to a larger automation system.
Features
- Pump Displacements: 4.2 - 26.1 cm³/rev
- Maximum Pressure: 230 bar (continuous)
- Maximum Power: 5.5, 7.5, and 11 kW with 3-phase, 400 V electric motor
- Fluid: Hydraulic mineral-based oil
- Pressure transducer and pressure switch
- Hydraulic fluid level switch and temperature switch
- Oil cooler ready
- Oil filter clogging switch
Advantages
- Designed for robustness and durability
- Ready to use in most automation projects
- Can be equipped with proportional and/or ON-OFF valves
- Manufactured in Europe
- Ready to dispatch within a few days
Applications
The Hydraulic Power Unit HS00390 series is ideal for applications requiring high force or high torque. It can serve as the main power unit for a machine or as the workhorse for the most demanding functions.
